Overview

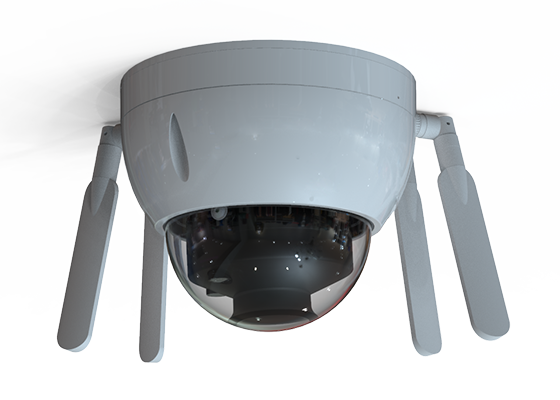

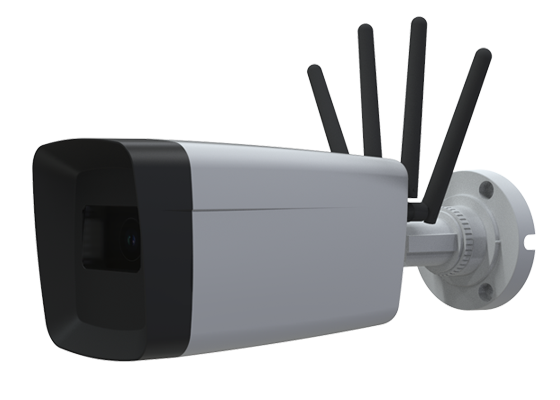

The 5G-enabled surveillance cameras (Dome / Bullet) are production-ready designs by VVDN, targeting global OEMs. These surveillance cameras are based on high-end AI-enabled SoC and have integrated a 5G module, enabling 5G connectivity for transmitting video signals with faster speed and ultra-low latency. The camera also supports advanced AI video analytics, including Face Detection/Recognition, People Counting, LPR (License Plate Recognition), Object Detection/Classification, and object pattern recognition models.

Features :

  • Based on high-end AI-enabled SoC
  • 5G enabled for Private Network (supports Sub-6G bands)
  • Resolution: Up to 5MP@30fps
  • Motorized Varifocal Lens
  • Quad-stream supported
  • ONVIF Compliant (Profile S, G, and T)
  • IR Range: 50 meters
  • WDR: 120 dB

SoM – Qualcomm® QCS610/QCS410 based development kit comprises of:

Technical Specifications

Image Sensor
  • IMX335, 1/2.8" CMOS
Effective Pixels
  • IMX335 : 2616(H) x 1964(V)
Min. Illumination
  • 1 lux 1/8s; 0.1 lux 1/4s
Shutter Speed
  • 1/25s - 1/100,000 Slow Shutter ON/OFF
IR Distance
  • 50m
WDR
  • 120 dB
Memory
  • Micro SD & SDXC slot up to 256GB;
  • Class 10 or higher; Card not included.
Lens
  • Motorized vari-focal (2.7mm`13.5mm) Horizontal - 5MP : 100° (Wide); 29° (Tele)
FOV
  • Vertical - 5MP : 52° (Wide); 16° (Tele)
Focus Control
  • Auto / Manual
IRIS Control
  • Auto / Manua
Communication
  • Supports 5G /4G /3G
SIM card
  • Nano SIM
Market
  • North America, EMEA, APAC
5G FR1
  • 5G FR1 : n1, n2, n3, n5, n7, n8, n12*, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE
  • 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29DL, 30, 32, 34, 38, 39, 40, 41, 42, 43*, 46(LAA), 48(CRS), 66, 71
WCDMA
  • 1, 2, 3, 4, 5, 6, 8, 9, 19
Video Compression
  • H.265 / H.264 / MJPEG
Image Resolution
  • 2MP - 1080P(1920 X 1080) , 5MP - 1920P ( 2592 X 1944)
Streaming Capability
  • RTP - RFC3550 RTCP - RFC3550 RTSP - RFC2326 Unicast Streaming Multicast Streaming - RFC1112 level 1
Frame Rate
  • 1.-60 fps
Network
  • 1 RJ45 10M/100M Ethernet port
Audio
  • 1 Audio Input; 1 Audio Output
Alarm
  • 1 Alarm input; 1 Alarm output
Onboard Storage
  • Built-in micro SD / SDHC / SDXC slot
Analytics Supported
  • Face Detection/Recognition, People Counting, LPR, Object Detection/Classification
Operating Temperature
  • -40℃ to +60℃
Power
  • PoE (802.3at) / DC 12V±10%
Power Consumption
  • ~10.2W

Targeted Applications

Remote Monitoring
& Surveillance
Events
& Entertainment
Transportation & Traffic Management
Industrial Facilities
Retail
Healthcare
Smart City
Border Security
