Overview

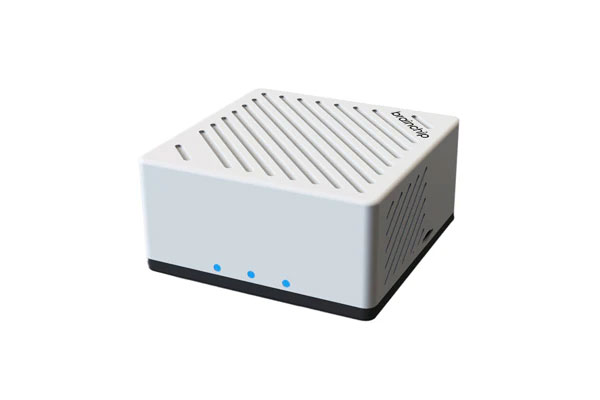

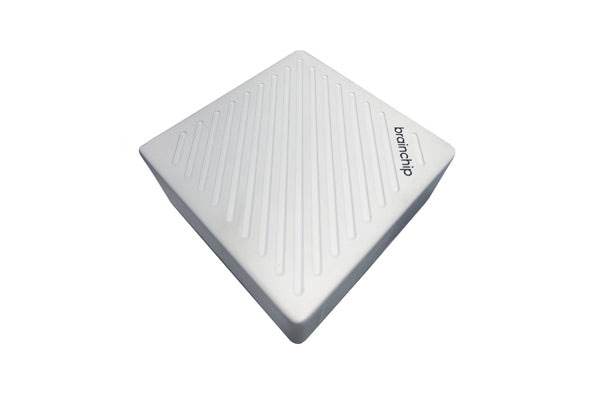

Developed in collaboration between VVDN and BrainChip, the AkidaTM Edge AI Box is a small form factor device designed to accelerate AI processing and enable advanced AI solutions at the Edge, with the integration of two BrainChip AKD1000 AI Accelerators and NXP's i.MX 8M Plus SoC, this box can execute diverse AI applications for vision, voice, vibration, and many other sensor applications. By processing data close to the sensor, security, and privacy are enhanced through minimizing the need for cloud connectivity and reducing exposure of sensitive data. The Edge AI Box enhances security and privacy.

VVDN and BrainChip also offer customization options to meet specific end-customer requirements.

Highlights

  • NXP i.MX 8M Plus Quad SoC
  • 2 x BrainChip AKD1000 Processors
  • 4GB LPDDR4, 32GB eMMC
  • Supports Linux Embedded OS Version 6.1
  • Small and Compact Size Enclosure
  • Easy to Build, Deploy, and Manage AI at the Edge
  • Supports 12VDC with an External Power Adapter

Technical Specifications

Host CPU
  • NXP i.MX 8M Plus Quad SOC
AI/ML Accelerator
  • 2 x AKD1000 (BrainChip Akida Chip) Over PCIe
Memory
  • 4GB LPDDR4, 32GB eMMC
OS
  • Linux Embedded OS Version 6.1
External Storage
  • Micro SD Card Connector that Supports Micro SD
Display
  • 1 x HDMI Output with Max Resolutions of 3840 x 2160p30 Pixel Clock upto 297MHZ
Network Connectivity
  • Wi-Fi Connectivity: 802.11 ac/b/g/n/c (2.4GHz /5GHz)
  • Ethernet Connectivity: Two Ethernet Port with 10/100/1000 Mbps
  • Ethernet Port Spports External Camera Interface
Max Encode
  • 1 x 1080P60 (H265 & H264) / 2 x 1080P30 (H265 & H264) / 4 x 720P30 (H265 & H264)
Max Decode
  • 1 x 1080P60 (H265 & H264) / 2 x 1080P30 (H265 & H264) / 4 x 720P30 (H265 & H264)
Interfaces
  • USB 3.0 Port Type A Port
  • USB 2.0 Port Micro B Port (Flashing and Debug port)
User Indication
  • 2x RGB LED for Status Indication
  • Power ON / OFF Indication LED (Green)
Operating Temperature
  • 0°C to 50°C
Operating Humidity
  • 5% to 95%
Power Input
  • 12VDC
Dimensions
  • 110mm x 110mm x 56mm (L x W x H)
Enclosure
  • Metal + Plastic Enclosure with Heatsink
  • IP42 Ratings

Targeted Applications

Security & Surveillance
Security & Surveillance
Retail
Retail
Smart City
Smart City
Automotive
Automotive
Transportation
Transportation
Industrial
Industrial
Smart Factories
Smart Factories
