Overview

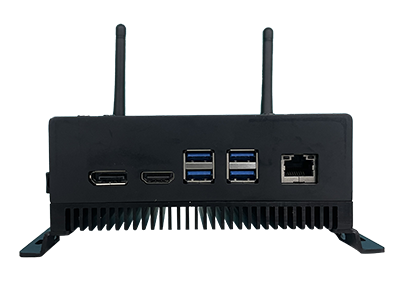

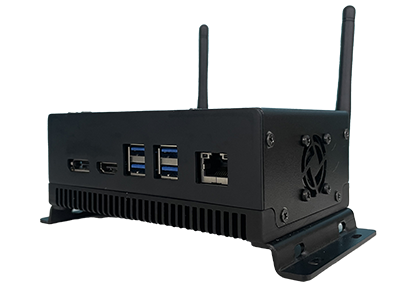

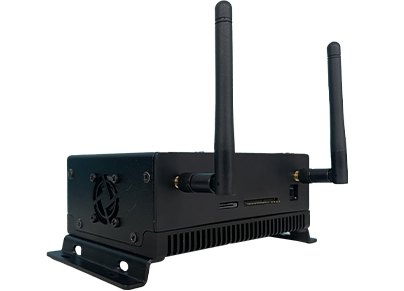

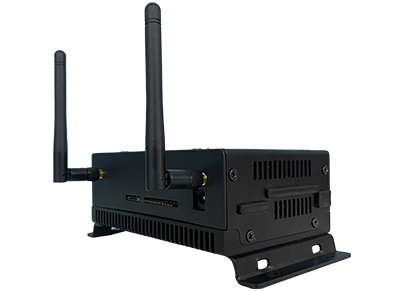

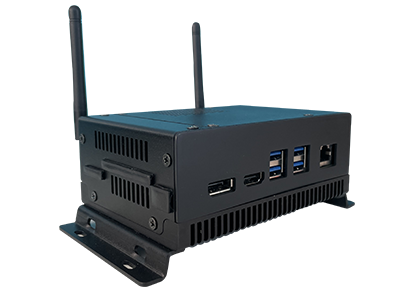

Edge AI Box is developed and manufactured by VVDN for building your next-gen autonomous machine at the edge. The box includes custom carrier board by VVDN along with NVIDIA powerful NVIDIA® Jetson Xavier NX™ Module.

Edge AI box is supported by the pre installed NVIDIA JetPack™ SDK with a customized BSP and patches from VVDN. The development system is backed up with the familiar Linux environment, CUDA-X accelerated libraries, APIs, and tools for edge AI application development. It also supports higher-level SDKs such as NVIDIA DeepStream for streaming video analytics.

Features :

  • Pre-installed Jetpack system from NVIDIA
  • Production ready Jetson Xavier™ NX module for advanced edge AI applications
  • Rich I/O peripherals to expand AI projects further
  • Sheet metal enclosure with fan
  • Easy to build, deploy, and manage AI at the edge
*Customized ID design is also available as per the customer requirement

Technical Specifications

Features Description
Module
  • Xavier NX (8GB / 16GB production version)
AI Performance
  • 21 TOPS
GPU
  • NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores
CPU
  • 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3
DL Accelerator
  • 2x NVDLA Engines
Vision Accelerator
  • 7-Way VLIW Vision Processor
Camera
  • 2x2 Lane MIPI CSI-2 DPHY
  • 1x4 Lane MIPI CSI-2 DPHY
USB
  • 4x USB 3.1, 1x USB 2.0 Micro-B
Network Connectivity
  • 1x M.2 Key E for WIFI/BT (WIFI/BT Module included)
  • 1x Gigabit Ethernet
Storage
  • 16 GB eMMC 5.1
  • 1x M.2 Key M for NVMe
  • NVMe500 GB SSD
  • Micro SD (optional)
Video Encode
  • 2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264)
Video Decode
  • 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264)
Display
  • 1x HDMI 2.0
  • 1x Display port
Power Supply
  • 12V/5A
Enclosure
  • Sheet Metal Case
Mechanical
  • 136mm X 97mm X 52mm
Other Interfaces
  • I2C, I2S, SPI, UART, CAN
*requires extra SW patch from VVDN for 4-Lane MIPI and SD card.

Target Industries

Traffic Management

  • Large screen size enables Students to read notes, prepare notes, research materials and video lectures

Smart Building

Smart Factory

Smart Retail

ADAS

Smart Healthcare
