Overview

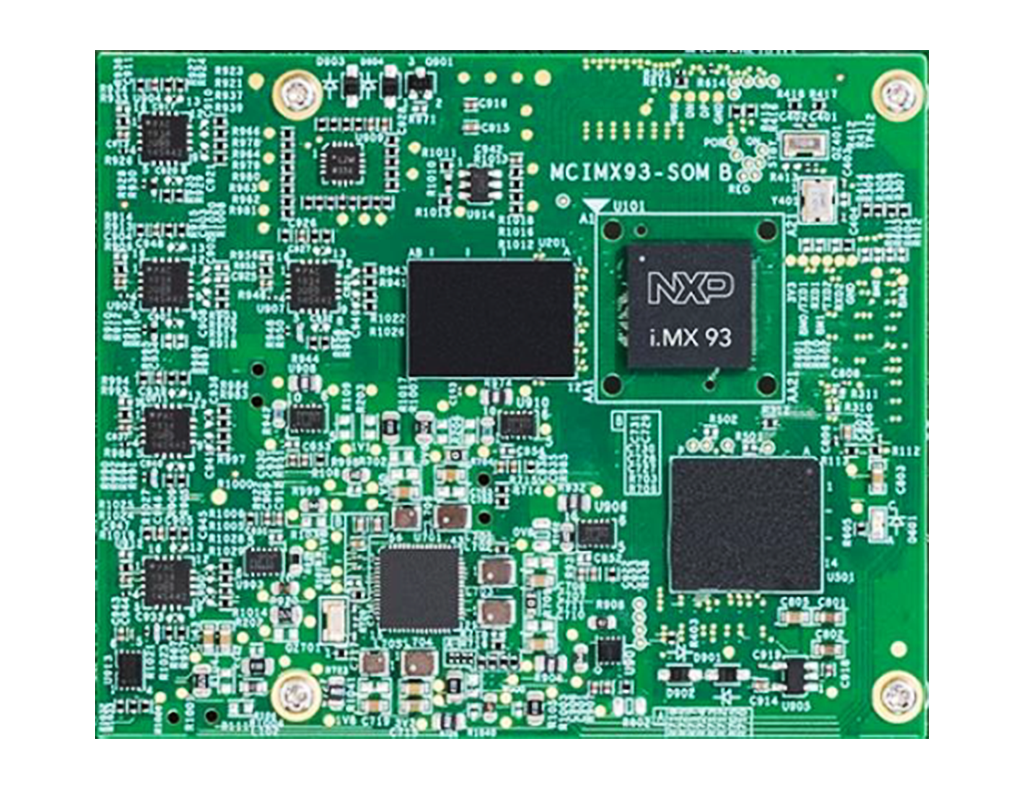

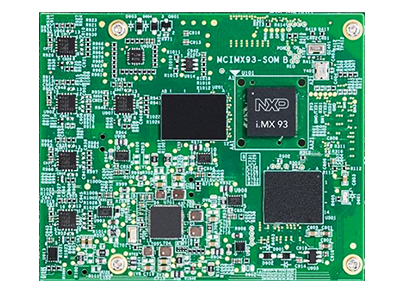

VVDN i.MX 93 SOM system on module is a compact and powerful solution based on NXP i.MX9352 SoC, The SOM includes powerful dual Arm® Cortex®-A55 processors with speeds up to 1.7 GHz integrated with a NPU that accelerates machine learning inference. The system on module offers tight system integration and optimization for superior performance and power management features make it the best to facilitate a cost effective and efficient for an embedded system application including Edge Computing and AI, Industrial IoT, Healthcare Devices, Consumer Electronics, Automotive, Networking and Communication, Security and Surveillance, Wearables, etc.

Highlighted Features:

  • High-performance IoT System-on-Chip (SoC) with NPU (Neural Processing Unit)
  • Machine learning, sensor processing, and voice control
  • High performance computing
  • Lower Latency
  • Supports Wi-Fi 6E (2.4G/5G/6GHz), BT 5.2
  • Easy to build, deploy, and manage AI at the edge Linux OS
IN STOCK

TECHNICAL SPECIFICATIONS

Features Description
Processor
  • Based on NXP i.MX9352 SoC
Multicore Processing
  • 2x Arm® Cortex®-A55 @ 1.7 GHz Arm Cortex-M33 @ 250Mhz Arm® Ethos™ U-65 microNPU EdgeLock® secure enclave
Memory
  • 2GB LPDDR4
Flash
  • 16GB eMMC 5.1
Display Interface
  • 24-bit Parallel, 4-Lane LVDS, MIPI-DSI-4
Camera Interface
  • 1 x 2-Lane MIPI-CSI,1 x 8-bit Parallel
Audio Modules
  • 8-ch PDM input, MQS,SAI/I2S
I/O Interface
  • 2xRGMII, 2xUSB2.0,SD(4bit) x 1,SDIO3.0(4bit),8x UART, 8x I2C ,8xSPI ,1x 4-ch 12-bit ADC, 2x CAN FD
OS
  • Linux® OS
Operating Temperature
  • -40 C° to 125 C°
Form Factor
  • OSM
  • Board-to-board connector (1*100 pin- 0.4 mm pitch, 2*80 pin-0.4 mm pitch)

TARGETED APPLICATIONS

This SoM offer a rich set of peripherals targeting automotive, industrial and Smart Home market segments:

Automotive

  • In Vehicle Infotainment
  • Smart Instrument Cluster
  • ADAS
  • Connectivity Gateways
  • Control Systems

Industrial

  • Public Address Systems

Smart Home

  • Audio/Video (AV) Receivers
  • Set Top Boxes
  • Surround Sound and Sound Bars
  • Wireless or Networked Speakers
