Overview

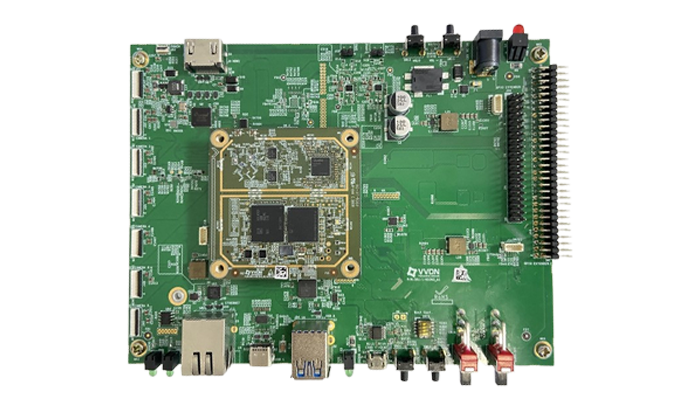

VVDN-QRB5165 development kit designed, developed and manufactured by VVDN comprises of carrier board and SOM based on powerful Qualcomm® QRB5165 System-on-Chip. The development kit supports multiple interfaces including 6x 4-lane MIPI CSI for camera, 2x 4-lane MIPI DSI for display and WLAN 2 x 2 802.11ax, Bluetooth 5.1 connectivity.

The development kit is suitable for developing visual intelligence applications requiring the highest AI processing performance. Some of the applications includes advanced robotics, autonomous delivery vehicles, edge AI boxes, industrial drones, etc.

Highlighted Features:

  • Based on powerful Qualcomm® QRB5165 SoC
  • Dedicated computer vision engine
  • Advanced imaging capability
  • 8GB LPDDR5 + 128GB UFS Flash
  • Multiple Camera & Display Interfaces support
  • Multiple high speed connectivity options
  • Ultra compact form factor
  • Linux based OS

Technical Specifications

Processor
  • Qualcomm® QRB5165 (PoP & Non PoP)
Display Interface
  • 2x 4-lane MIPI DSI D-PHY 1.2, up to 4K @ 60 Hz
Camera Interface
  • QRB5165 - 6x 4-lane MIPI CSI, Qualcomm® Spectra™ 480 image signal processor
Memory
  • 8GB LPDDR5 + 128GB UFS
Video Performance
  • QRB5165 - Encode: 8K30/4K120 Decode: 8K60/4K240
Wi-Fi
  • WLAN 2 x 2 802.11ax with DBS (QCA6391)
Bluetooth
  • Bluetooth 5.1

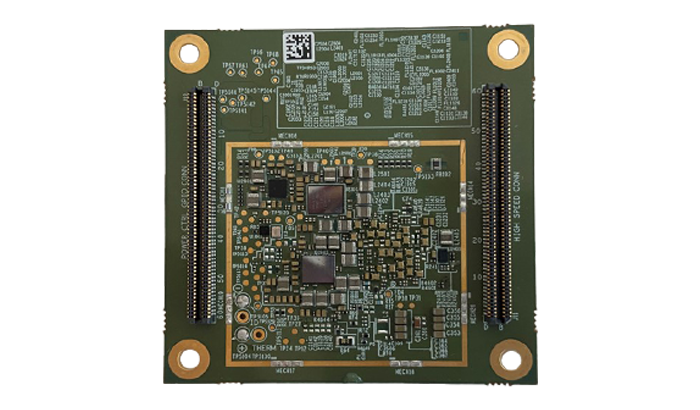

Sensor Core Interface
  • SPI, I2C, GPIO
I/O Interface
  • 2x240 pin board to board connector
  • 1 RGB LED – Status and debugging
  • 1 LED – SOM power indication
Interface with SOM
  • 2x 240 pins B2B Connector
Camera
  • 6xMIPI CSI (4 Lanes)
Ethernet
  • RJ45 (10/100/1000Mbps)
USB Connectivity
  • 1X USB 3.1 Type C
  • 2X USB 2.0 Type A (Host Only)
Storage
  • Micro SD card Connector
Display interfaces
  • 1x MIPI DSI for HDMI Out / Display connectivity
I/O Interface
  • UART, I2C, SPI, configurable GPIOs, CAN provision,
  • Additional GPIO header and Audio I/O connector
  • 2 LED – User configurable
  • 1 LED – Carrier power indication
  • 1 LED – UART readiness
M.2 connector
  • For 4G/5G Module (PCIe/USB Interface)
Power In
  • 12V DC
Audio In/Out
  • Provision for 6 microphones
  • Stereo speaker support upto 4W
Debug
  • Debug console through Micro USB

TARGETED APPLICATIONS

Autonomous Delivery Vehicles
Edge AI Box
Industrial Drones
Cobots& Intelligent machines
