Overview

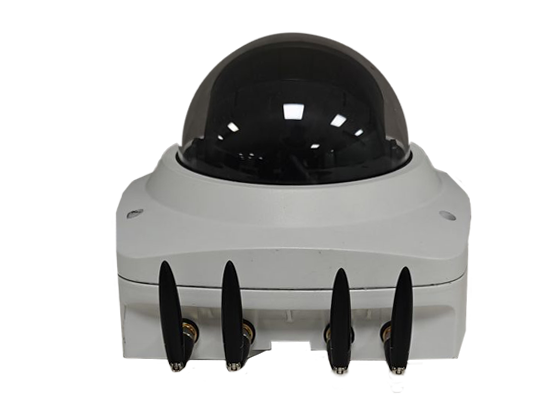

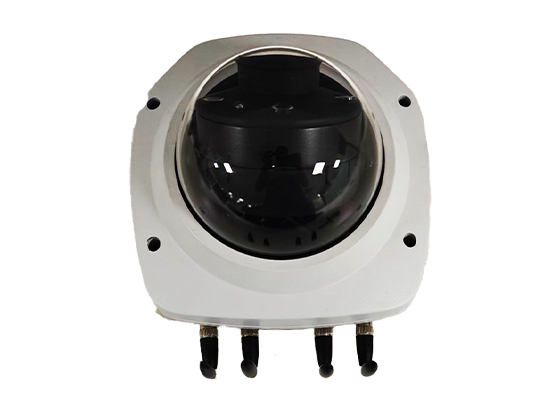

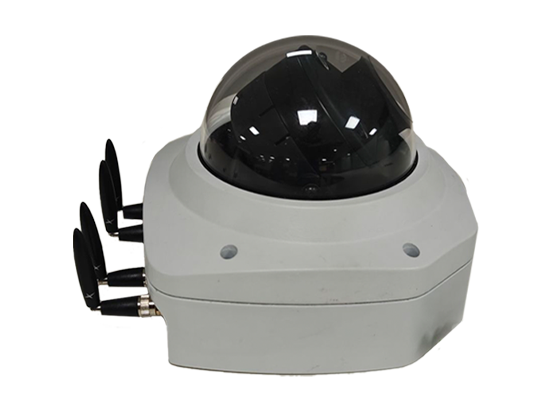

VVDN, in joint collaboration with Qualcomm, has designed and developed a production-ready camera reference design for a 5G-enabled smart surveillance camera. Powered by the Qualcomm QCS610 SoC, the camera delivers reliable surveillance with smart features for seamless monitoring. It also comes with 5G connectivity through an integrated 5G module from Telit, enabling high-quality video streaming over the cloud, facilitating real-time monitoring across diverse applications such as traffic management, security, and remote site monitoring. With advanced AI/ML capabilities for Edge Analytics, including Tripwire, Intrusion Detection, Face Detection, Object Counting, License Plate Recognition, and Behavioral Analysis, the camera provides enhanced, localized data processing.

The camera is available to all OEMs looking for a white-label solution. VVDN can also support any customization with quick turnaround times.

Features

  • Based on Qualcomm QCS610 SoC
  • Image Sensor: Sony IMX675
  • Integrated Module for 5G Connectivity
  • Resolution: 1920X1080@60fps
  • Fixed Focus Lens
  • Storage Expandability via SD Card
  • ONVIF Compliant (Profile S and T)
  • IR Range: 30 meters
  • IP66 Rated

SoM – Qualcomm® QCS610/QCS410 based development kit comprises of:

Technical Specifications

SoC
  • QCS610
Image Sensor
  • 5MP IMX675
Resolution
  • 1920X1080@60fps
FOV
  • HFOV: 97°; VFOV: 55°
Night Vision
  • Yes, up to 30M
Focus
  • 3.6mm, F1.6, Fixed Focus
Memory
  • 4GB LPDDR4x
Storage
  • 16GB eMMC
  • Micro SDXC up to 2TB
Audio
  • Bi-directional; 1 Input, 1 Output. Built in Microphone
Sensors
  • IMU, ALS
Connectivity
  • 5G Enabled using Telit FN990, Ethernet
Power Input
  • PoE/PoE+ 12VDC
Status LED
  • Yes, RGB LED
Other Connectors
  • Micro USB, M.2 Connector
Operating Temperature
  • -20° to +60°C
Form Factor
  • Dome; IP66 Rated

Targeted Applications

Remote Monitoring
& Surveillance
Events &
Entertainment
Transportation &
Traffic Management
Industrial Facilities
Retail
Healthcare
Smart City
Border Security

Our offerings

White Label
Customization as per Need
Mass Manufacturing
